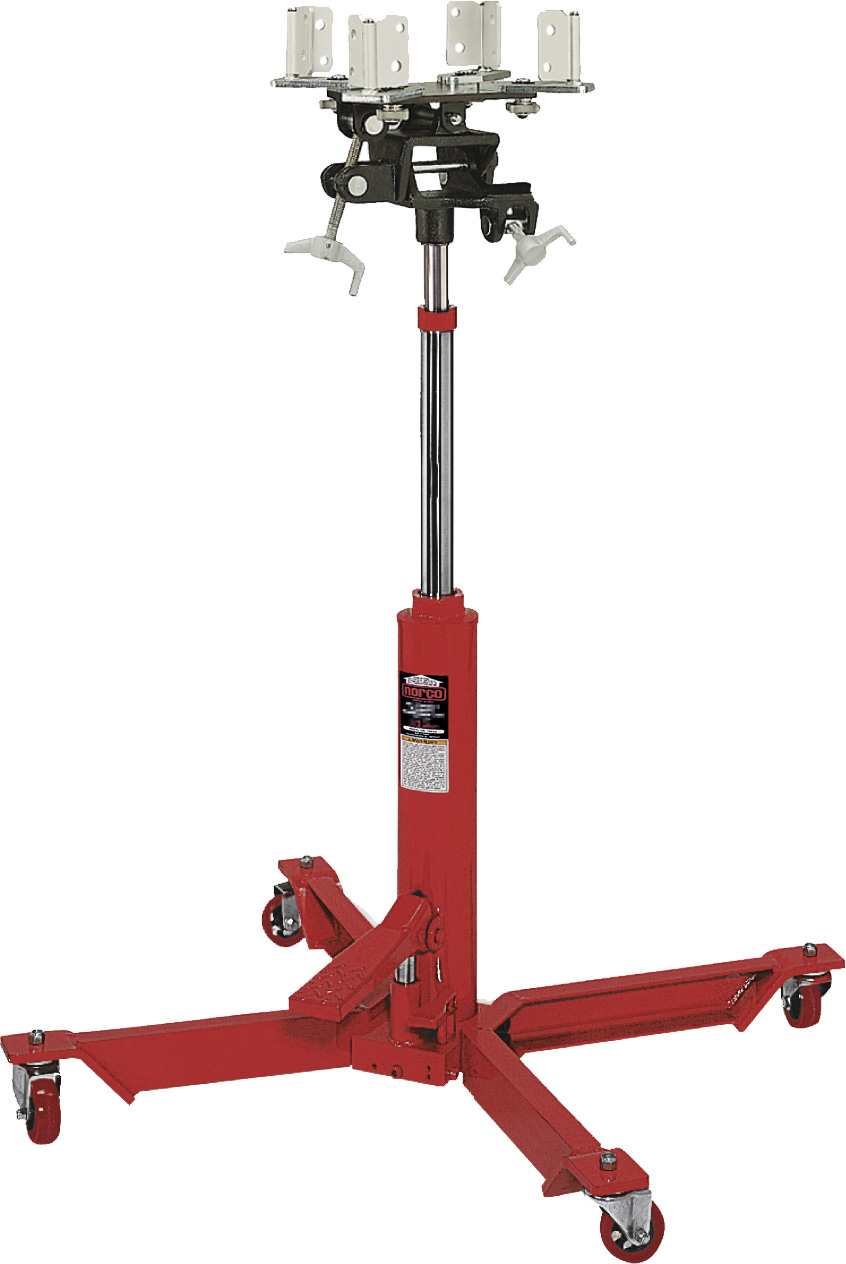

72500E Norco 1/2 Ton Transmission Jack
72500E Norco 1/2 Ton Transmission Jack
1/2 Ton Capacity
Telescopic Under Hoist
Single Pump Transmission Jack
INTENDED USE:
Designed for the removal, installation and transportation (in the lowered position) of transmissions and transfer cases on passenger cars, vans and light trucks that are raised by an in-ground or above-ground lift.
FEATURES:
- Fully adjustable universal saddle with hand adjustable corner brackets and safety chain.
- Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
- Foot operated pump and lowering pedals allow use of both hands to position and align saddle with transmission.
- Two-stage flash chromed rams inhibit rust from entering hydraulic system.
- Wide base with four easy rolling 4″ diameter swivel ball bearing caster wheels provides
stability and easy maneuvering in its lowered position. - Polyurethane wheels provide protection for expensive tile and epoxy floors.
DIMENSIONS:
| Low Lift Height | 35″ |
| High Lift Height | 72″ |
| Base Dimensions | 34″ x 37″ |
| Shipping Weight | 176 lbs. |
