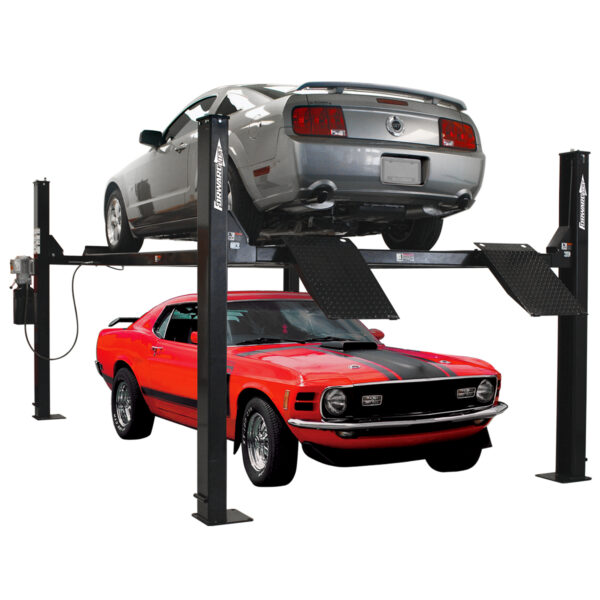

EFP9 Forward 4-Post Lift

9,000 lbs. capacity 4 post lift, perfect for the home enthusiast.

Specifications EFP9
Capacity 9,000 lbs. (4082kg)
Lifting Height 84″
Ceiling Height to be height of highest vehicle to be raised plus 84″
Overall Length w/ Approach Ramps 225-1/2″
Overall Length w/out Approach Ramps 193-1/8″
Overall Width w/ Motor 131″
Overall Width w/out Motor 121-1/2″
Approach Ramp Length 36-1/4″
Runway Tread Width 21-3/4″
Runway Length 184-1/2″
Runway Height 4-3/4″
Height of Columns 97″
Clearance Between Columns 109-1/2″
Width Between Runway Treads 39″
Outside Runway to Outside Runway 79-1/2″
Clearance Under Runways 79-1/4″
Drive Through Width 97″
Height of Columns 97″
Power Unit 110 Volt , 1HP – (220 Volt Optional)
Shipping Weight 2,350 lbs.
